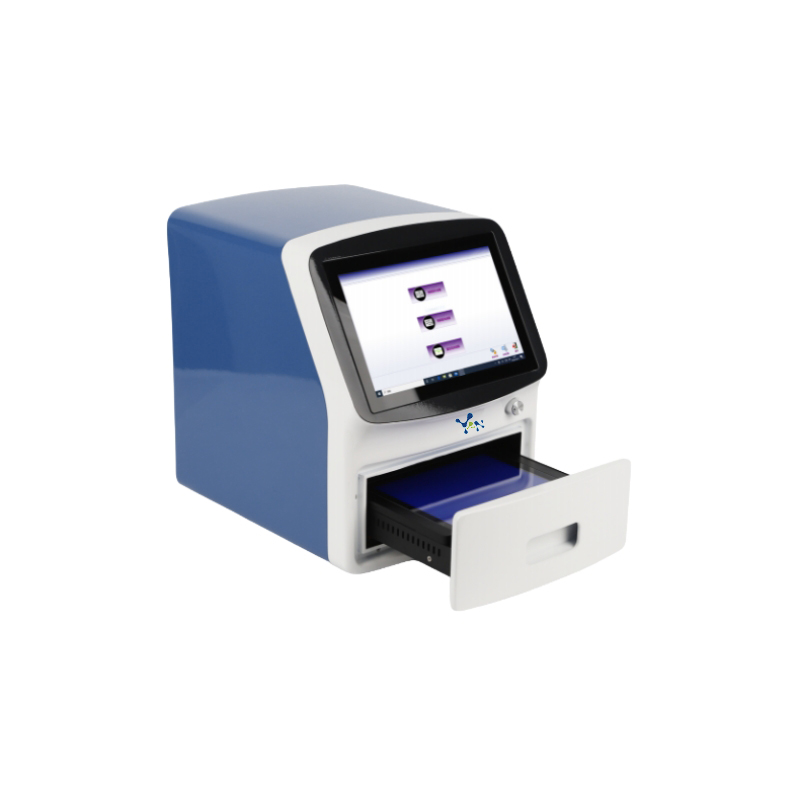

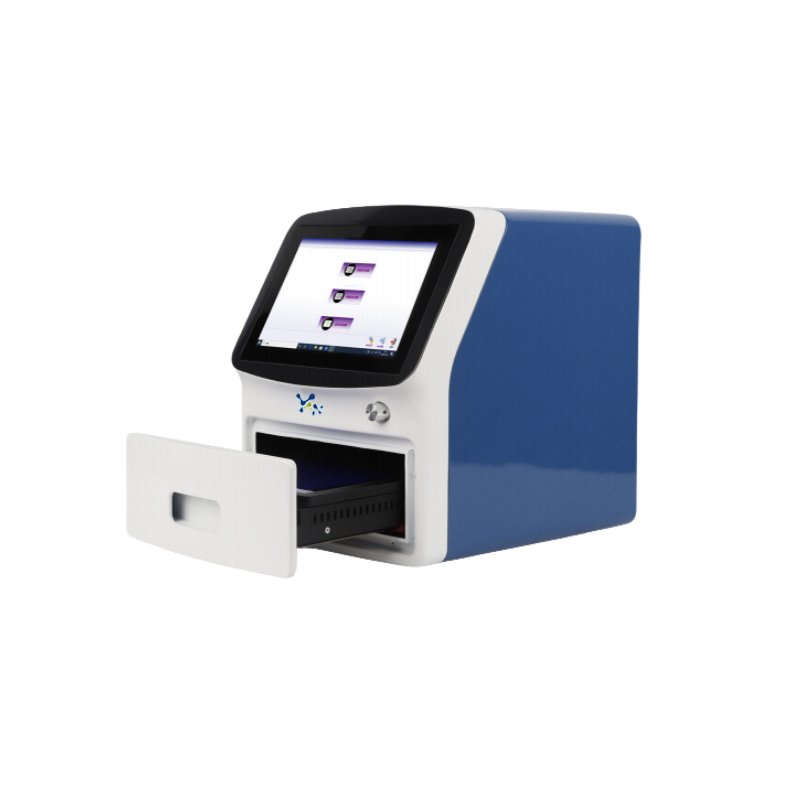

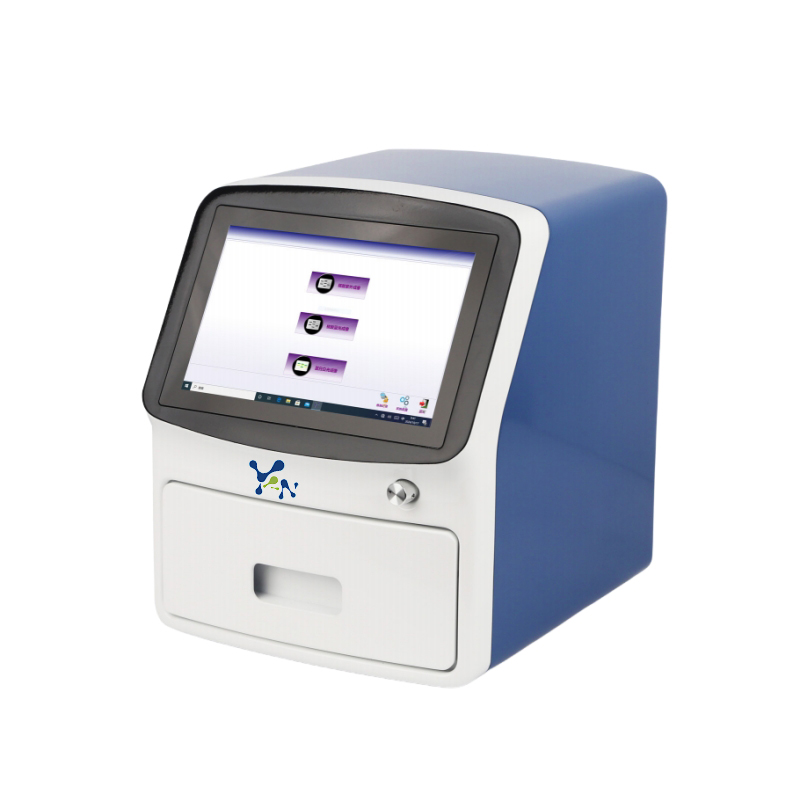

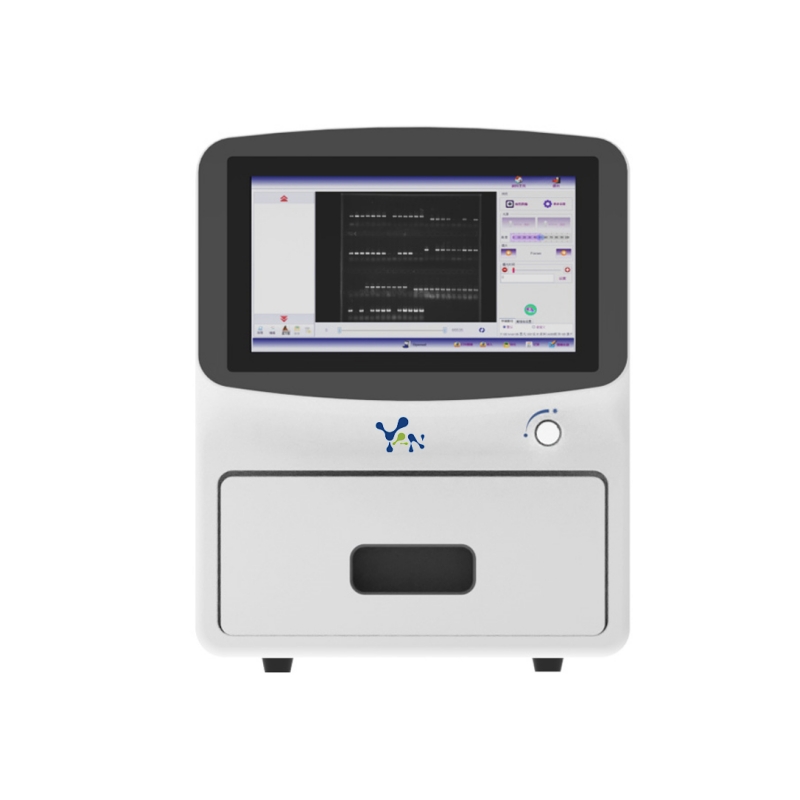

Portable Gel Documentation System for Lab DNA Analysis Automatic Gel Electrophoresis Imaging System
Built-in 10.1 Inch Screen, White/UV/Blue Light Adjustable
Кот. Нет. :
YB-GD2Бренд :
YanbiotechПроисхождение продукта :
ChinaСпец. :
10.1 Inch Screen, White/UV/Blue Light AdjustableProduct Introduction
Following gel electrophoresis, Gel Documentation System is employed to visualize and document the separated bands of DNA, RNA, or proteins within the gel. It transforms these results into quantifiable data for further analysis.
Product Specifications
|
Product Name |
Gel Documentation System |
|
|
Cat. No. |
YB-GD2 |
|
|
Camera |
Resolution |
5.0MP |
|
Pixel Size |
5.2×5.2μm |
|
|
Target Size |
1/1.8”(7.37×4.92mm) |
|
|
Sensitivity |
75% |
|
|
Noise Ratio |
69.8dB |
|
|
Exposure Time |
0-2000ms |
|
|
Grayscale |
16-bit |
|
|
Camera Type |
Black and White Camera |
|
|
Lens |
Type |
Motorized zoom lens |
|
Light |
Bright Field Light Source |
Falling LED white light source, symmetrical distribution on both sides |
|
UV Light Source |
302nm LED array with uniform transmission illumination |
|
|
Light Isolation |
Fully light-sealed, isolates environmental light |
|
|
Dark Box |
Door Control |
Door control sensor can control the on/off of the bright field light source |
|
Field of View |
Effective field of view is 130×170 mm |
|
|
Gel Cutting |
After opening the door,the UV light source can be pulled out cutting,in conjunction with a UV protection shield |
|
|
Software Functions |
Camera Settings |
Adjust contrast, exposure time, and gain |
|
Lens adjustment |
Select the adjustment range: coarse adjustment, fine adjustment, super fine adjustment, |
|
|
Picture cropping |
Cut the desired portion of the strip |
|
|
Industrial Computer |
10.1 inches, 1024×768, Windows operating system |
|
|
External Interfaces |
USB 3.0×4 |
|
|
Operating Voltage |
100 V - 240 V |
|
|
Power |
120W |
|
|
Net Weight |
8.5kg |
|
|
Dimensions |
365*290*350mm |
|
Key Features
High Sensitivity: 16-bit high-sensitivity camera for low-concentration DNA/RNA detection.
High Resolution Autofocus Lens: Present clear image details.
Modular design, Application can be Flexibly Expanded: White light transmittance module and blue light transmittance module can be selected according to experimental requirements..
Software is intuitive, Friendly and Functional: The electrophoretic images and analysis results can be obtained accurately and quickly, and the experimental efficiency can be improved.
Applications
