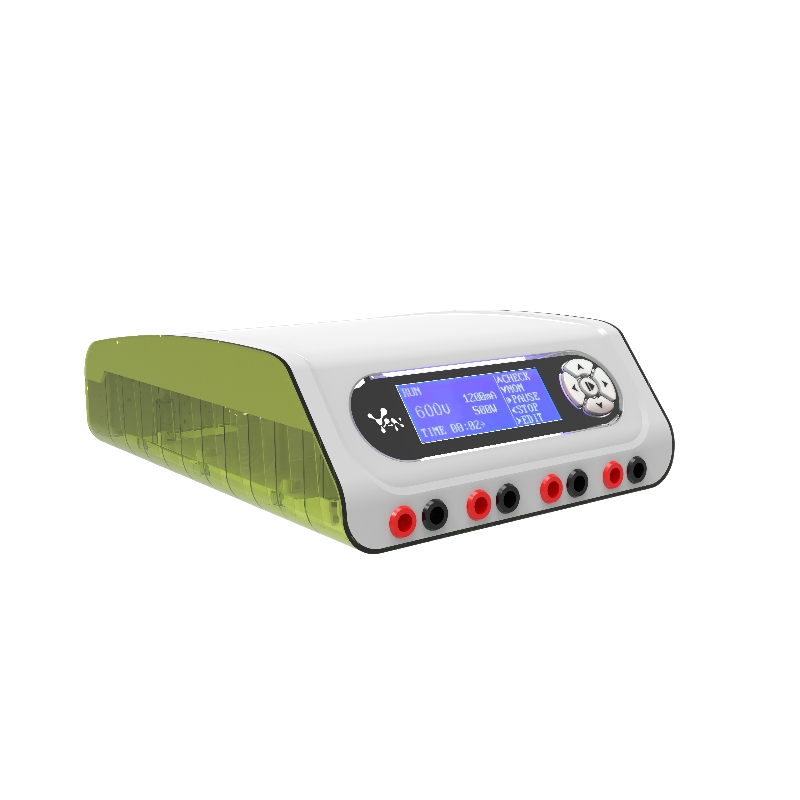

High Current 600W Universal Electrophoresis Power Supply

Product Name

Programmable Electrophoresis Power Supply

High Current Electrophoresis Power Supply

Dual Module Electrophoresis Power Supply

Item Code

YB-PS

YH-PSH

YB-PSD

Channel

Single channel, a total of 6 groups of output ports.

Single Channel, total 4 Channels

Independent dual channels, a total of 6 groups of output ports.

Terminal

Output port parallel output.

Output port parallel output.

The left and right sets of independent dual power supply outputs can also be independently controlled without interfering with each other.

Temperature

4-40℃

 4-35℃

Parameters

600V,600mA,300W

600V, 1200mA, 500W

500V,500mA,250W

Voltage Range

6-600V

5-600V

6-500V

Current Range

6-600mA

1-1200mA

6-500mA

Type

Constant voltage, constant current, gradient voltage, gradient current

Constant voltage, constant current, constant power

Constant voltage, constant current, gradient voltage, gradient current

Timing Range

0-99h60min

0-99h60min

0-99h60min

Pause/Resume Function

Yes

Yes

Yes

Programmable method

Gradient Voltage, gradient current, three steps

Storage of 20 programms with each less than 10 steps.

Gradient voltage, gradient current, three steps

Power off memory Function

Yes

Yes

Yes

Screen Size

4 inches

4 inches

4 inches

Input Power

AC180-240V/110-120V, 50/60HZ

AC180-240V/110-120V, 50/60HZ

AC180-240V/110-120V, 50/60HZ

Size

265*215*120mm

308*242*100mm

265*215*120mm

Net Weight

1.8kg

2.5kg

2.25kg
