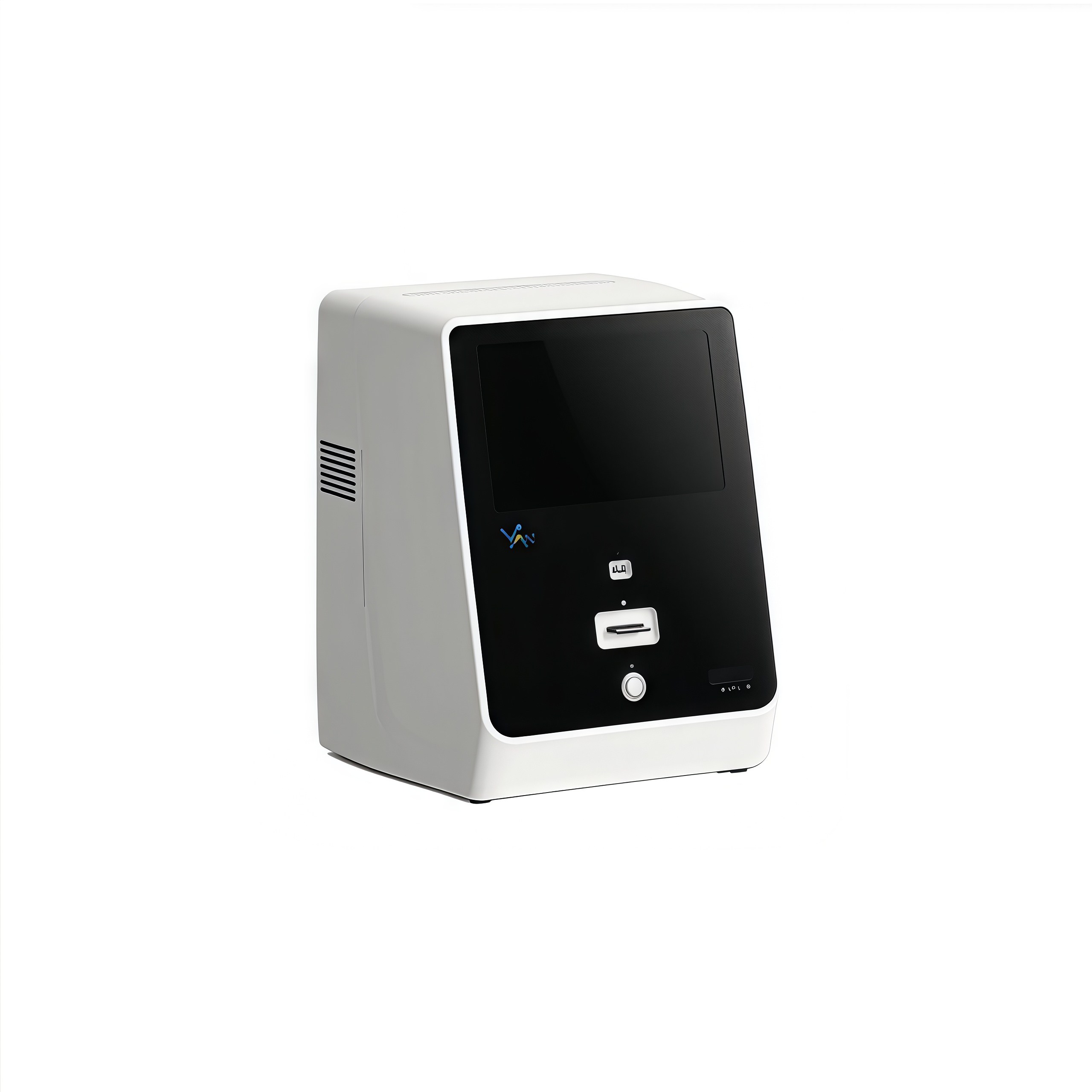

Laboratory Small Automatic Cell Counter AI Precise Cell Counting

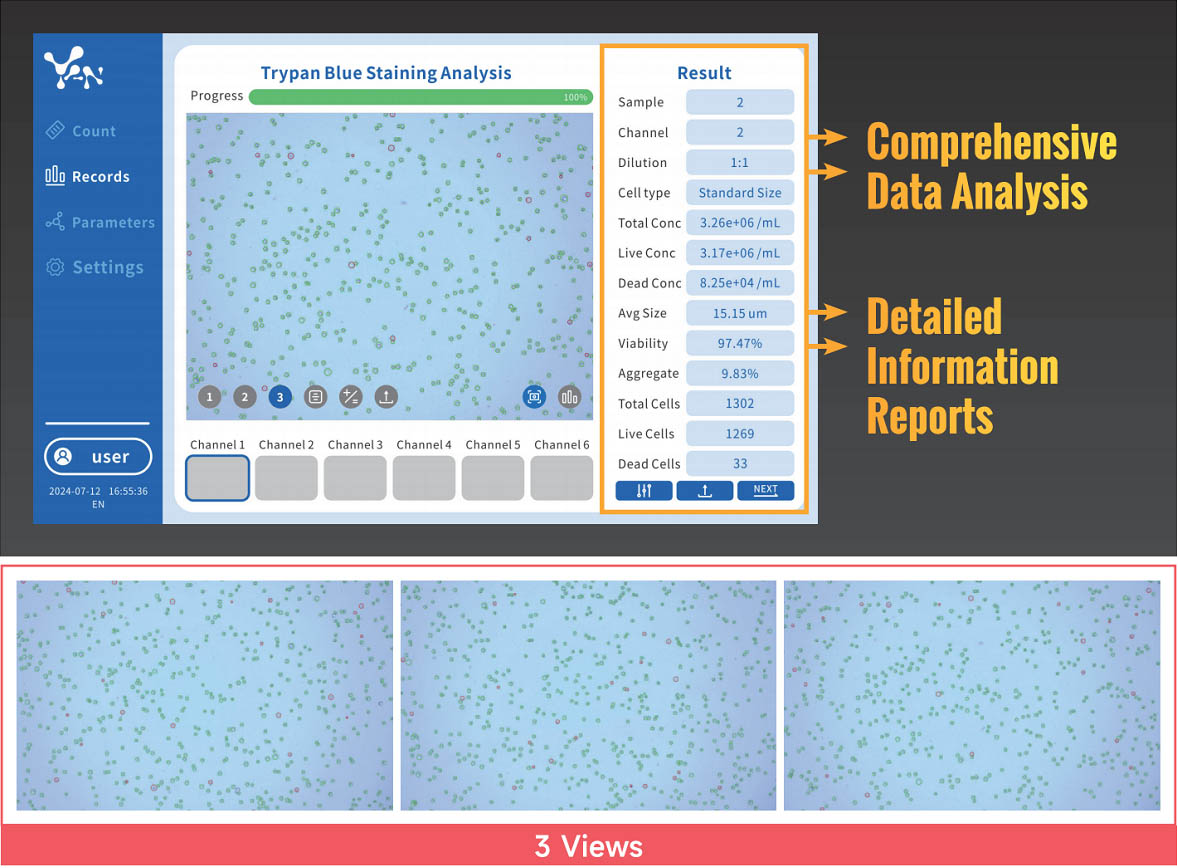

6 channel throughput, fully automatic and precise counting, comprehensive data analysis report
Кот. Нет. :
YB-CCБренд :
YanbiotechПроисхождение продукта :
ChinaСпец. :
Bright field/trypan blue staining)Product Introduction
Automated cell counters are devices that quickly and accurately quantify cells in a sample, reducing human error compared to manual counting. They are widely used in research, clinical labs, and biomanufacturing.
Product Specifications
|
Product Name: |
Cell Counter |
|
Cat No. |
YB-CC |
| Single Detection throughput |
6 times |
|
Consumable type |
Disposable Counting Chamber |
|
Counting Mode |
Bright filed/Trypan blue staining |
|
Focusing Method |
Auto-focus |
|
Sample Introduction Method |
Automatic sample feeding |
| Pixel of material machine for pasting group |
6.3MP CMOS |
|
Bright field light source |
LED light |
| Optical Magnification |
3* |
|
Field of view image |
Single channel with 3 views of photography |
|
Display module solution |
LCD 10.1" multi-touch 1280X800 |
|
Image Resolution |
3072*2048 |
| Image format |
JPG |
|
Result output format |
JPG/PDF/CSV |
|
Storage space |
256G |
| Storage record | 1000pcs |
|
Sample type |
Suspension-cultured cells/Adherent-cultured cells/Mammalian cells Human cells/PBMC and other cells |
|
Cell concetration |
5×104-1.5×107cells/mL |
|
Optimal concentration range |
5×105-1×107cells/mL |
|
Cell diameter |
5-60μm |
|
Counting time |
Single channel < 205 |
|
Sample volume |
10uL |
|
Dimensions |
287x283x388 mm |
|
N.W. |
9.6kg |
|
Power |
70w |
|
Electrical parameters |
12v |
Applications
